Cat6 vs Cat6A: Which Cable Should Your Building Use?

If you are planning an office fit-out, a new building or a network refresh, someone will eventually ask: Cat6 or Cat6A? Both are copper twisted-pair cables that carry data, voice and power to the devices in your building. The difference is how much bandwidth they support over distance, how well they resist interference and what they cost to install. Here is how we help clients decide.

Cat6 vs Cat6A at a Glance

• Cat6 supports 1 Gbps to the full 100 meter channel and 10 Gbps up to about 55 meters (shorter in bundles). Rated to 250 MHz.
• Cat6A supports 10 Gbps to the full 100 meters. Rated to 500 MHz, with much better protection against alien crosstalk (interference from neighboring cables).
• Size and weight: Cat6A is thicker and heavier, so pathways, J-hooks and tray fill up faster.
• Cost: Cat6A cable, jacks and patch panels cost more, and the larger cable takes a little longer to install and terminate. The labor to pull either cable is similar.
• Power over Ethernet: Both carry PoE, but Cat6A’s larger conductors run cooler in bundles, which matters for high-power devices like PTZ cameras and Wi-Fi 6E and Wi-Fi 7 access points.

When Cat6 Is the Right Choice

Cat6 is still the workhorse for most workstation drops. A desk phone, a laptop dock or a printer will not use more than 1 Gbps for years, and Cat6 handles 2.5 Gbps and 5 Gbps multi-gigabit links to 100 meters as well. If you are cabling a standard office, a retail store or a clinic where most drops end at a desk, Cat6 gives you solid performance at the lowest cost.

Cat6 also makes sense for short runs in a small building where every drop is well under 55 meters, because 10 Gbps will still work at those distances if you ever need it.

When Cat6A Is Worth the Upgrade

We recommend Cat6A in four situations:

1. Wireless access points. Current access points negotiate 2.5 Gbps or 5 Gbps uplinks and draw more power than older models. Cat6A to each access point location keeps the wireless network from being bottlenecked by the cable behind it. Many wireless designs now call for two Cat6A cables per location.
2. Long horizontal runs. If drops will approach 100 meters and you want 10 Gbps as an option, Cat6A is the only copper choice that gets you there.
3. Buildings you expect to keep for 10 to 15 years. Structured cabling usually outlives two or three generations of switches. Cat6A protects that investment.
4. Healthcare, education, government and industrial sites. Imaging equipment, high-density camera systems, lab instruments and plant floor devices benefit from the extra headroom and interference resistance.

A Common Approach: Mix Both

Most of our commercial projects end up with a mix. Cat6 to workstations, conference tables and printers, and Cat6A to access points, cameras, telecom room uplinks and any location where the client wants 10 Gbps available. This keeps the budget reasonable while putting the higher grade cable exactly where it earns its cost.

What About Fiber?

Copper is for the horizontal run from the telecom room to the device. Links between telecom rooms, between buildings and to a data center should almost always be fiber, regardless of which copper category you choose. Our fiber optic installation and splicing page covers single-mode and multimode options.

Installation Details That Matter More Than the Category

A Cat6A link installed poorly will test worse than a Cat6 link installed well. Whatever you choose, insist on:

• Components from one manufacturer’s system (cable, jacks and panels) so the channel performs as rated.
• Bend radius, pull tension and bundle size kept within the manufacturer’s limits.
• Separation from fluorescent lights, motors and electrical conduit.

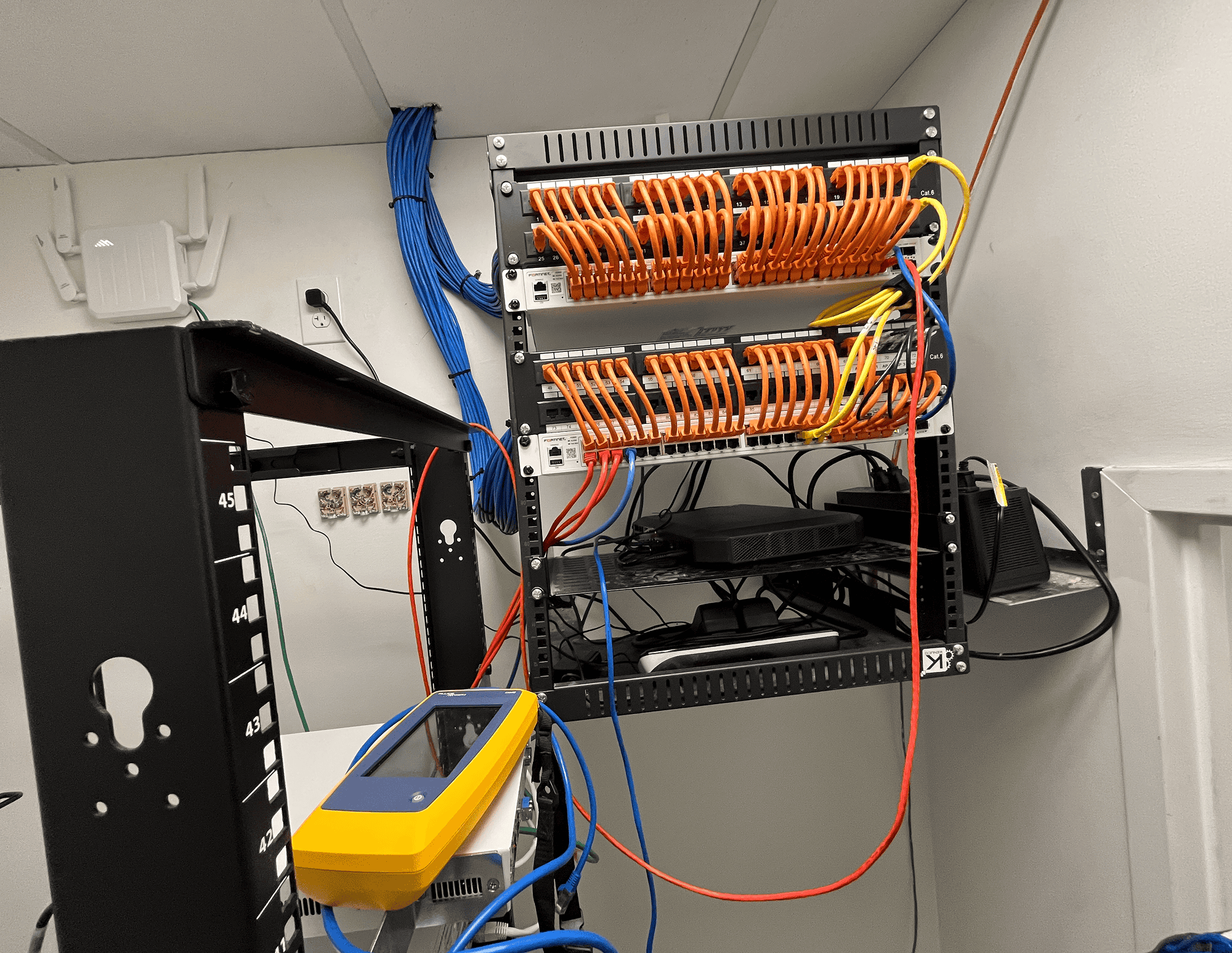

• Field certification of every link with a tester, with the results handed to you.
• Labels on both ends and a documented panel schedule.

That is standard practice on every structured cabling installation CCS Communications delivers.

Frequently Asked Questions

Is Cat6A backward compatible with Cat6 and Cat5e?
Yes. Cat6A uses the same RJ45 connector and will link at whatever speed the devices on either end support.

Do I need shielded Cat6A?
Usually not. Unshielded Cat6A is designed to meet alien crosstalk limits on its own. Shielded cable is used in high-interference industrial environments and some secure facilities, and it requires proper grounding and bonding to work correctly.

Should I skip Cat6A and go straight to Cat8?
No for general office cabling. Cat8 is designed for short data center links between switches and servers, not for horizontal runs to desks and access points.

How much more does Cat6A cost than Cat6?
Materials run noticeably higher per drop and installation takes slightly longer, but on a full project the difference is a fraction of the total because labor, pathways and telecom room build-out are the same either way. We price both options in our proposals so you can see the exact difference for your building.
